Forged Brass Ball Valve
The company’s cut-off overflow valve built into the safety valve can be used for LPG/propane gas for household and restaurant use.
Specification
· Size: 8A (1/4″) ~ 100A (4″)
· Working Pressure: 10 kgf/cm² (0.98 MPa)
· Maximum Pressure: 14 kgf/cm²
· Maximum Temperature: 80°C
· Thread Specification: KS B 0222 (PT)

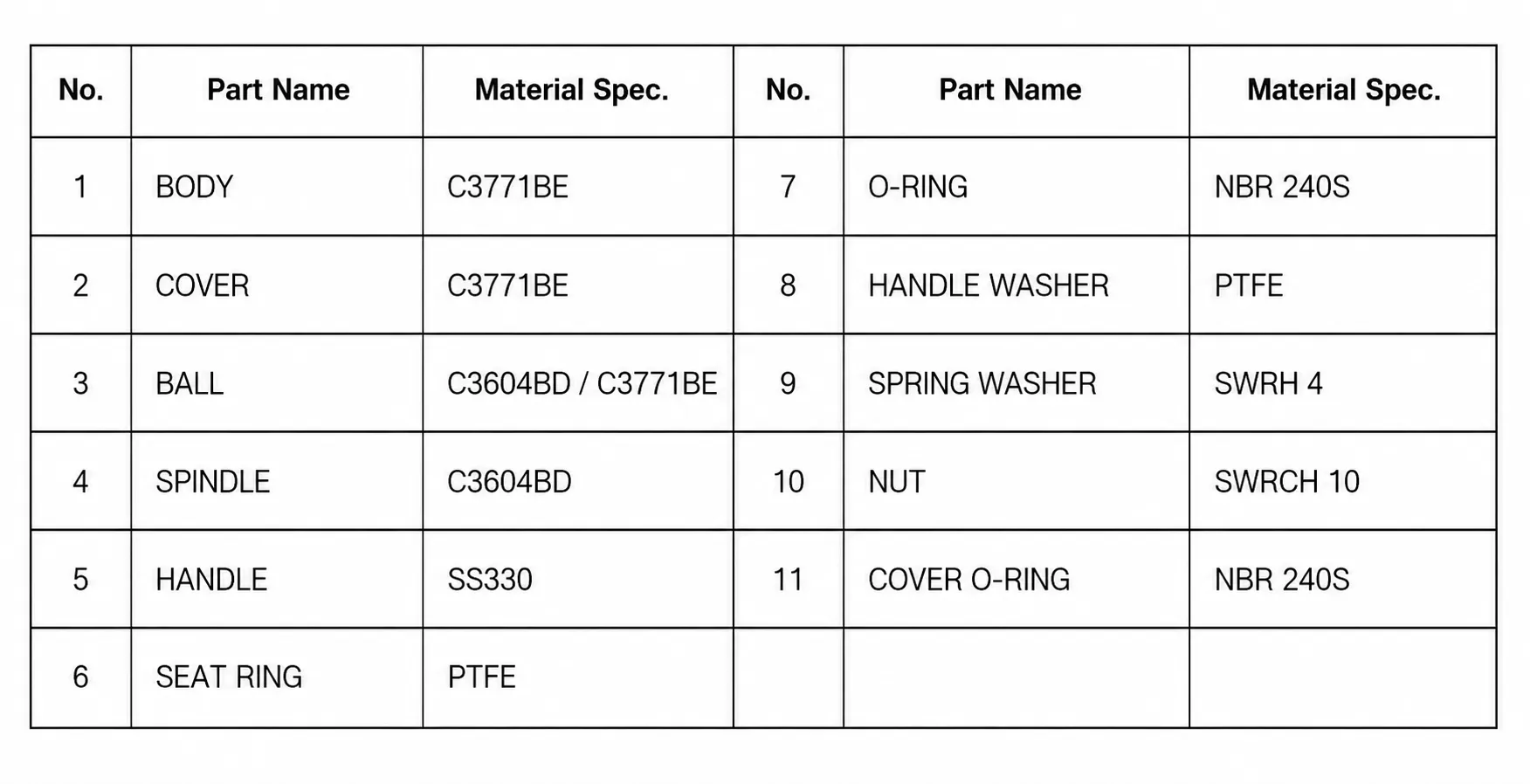

Part Name & Materials

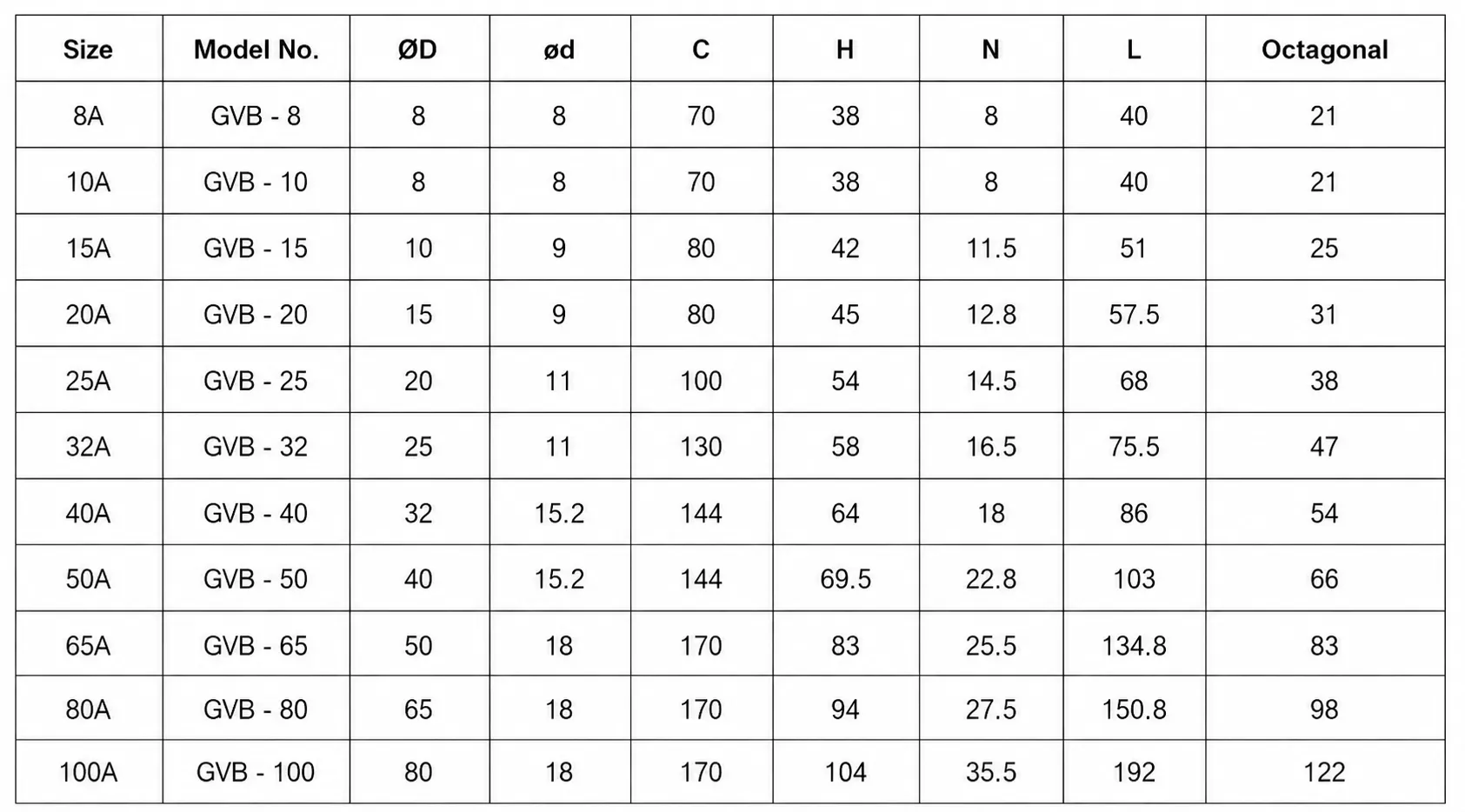

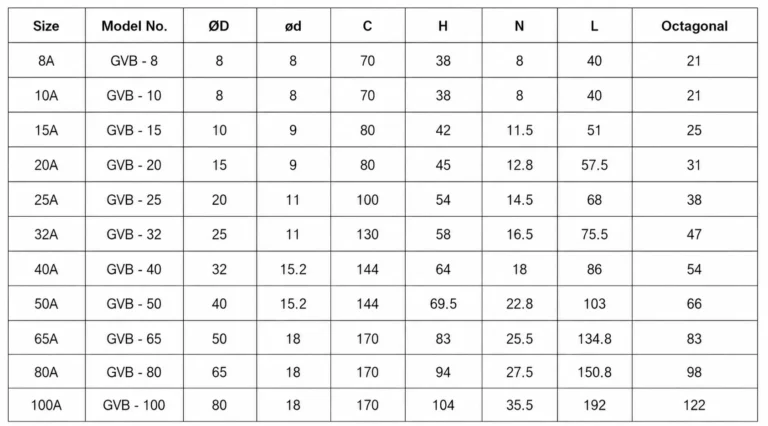

Dimensions
