Long Stem Full Bore Ball Valve
The company’s cut-off overflow valve built into the safety valve can be used for LPG/propane gas for household and restaurant use.
Features
· Extended stem design provides easy insulation work.
· Full bore design ensures maximum flow capacity.
· Nickel (Ni) plated finish offers an attractive appearance and is suitable for potable water piping systems.
· Full bore design ensures maximum flow capacity.
· Nickel (Ni) plated finish offers an attractive appearance and is suitable for potable water piping systems.
Specification
· Size: 15A (1/2″) ~ 50A (2″)
· Working Pressure: 10 kgf/cm² (0.98 MPa)
· Maximum Pressure: 14 kgf/cm²
· Maximum Temperature: 80°C
· Thread Specification: KS B 0222 (PT)

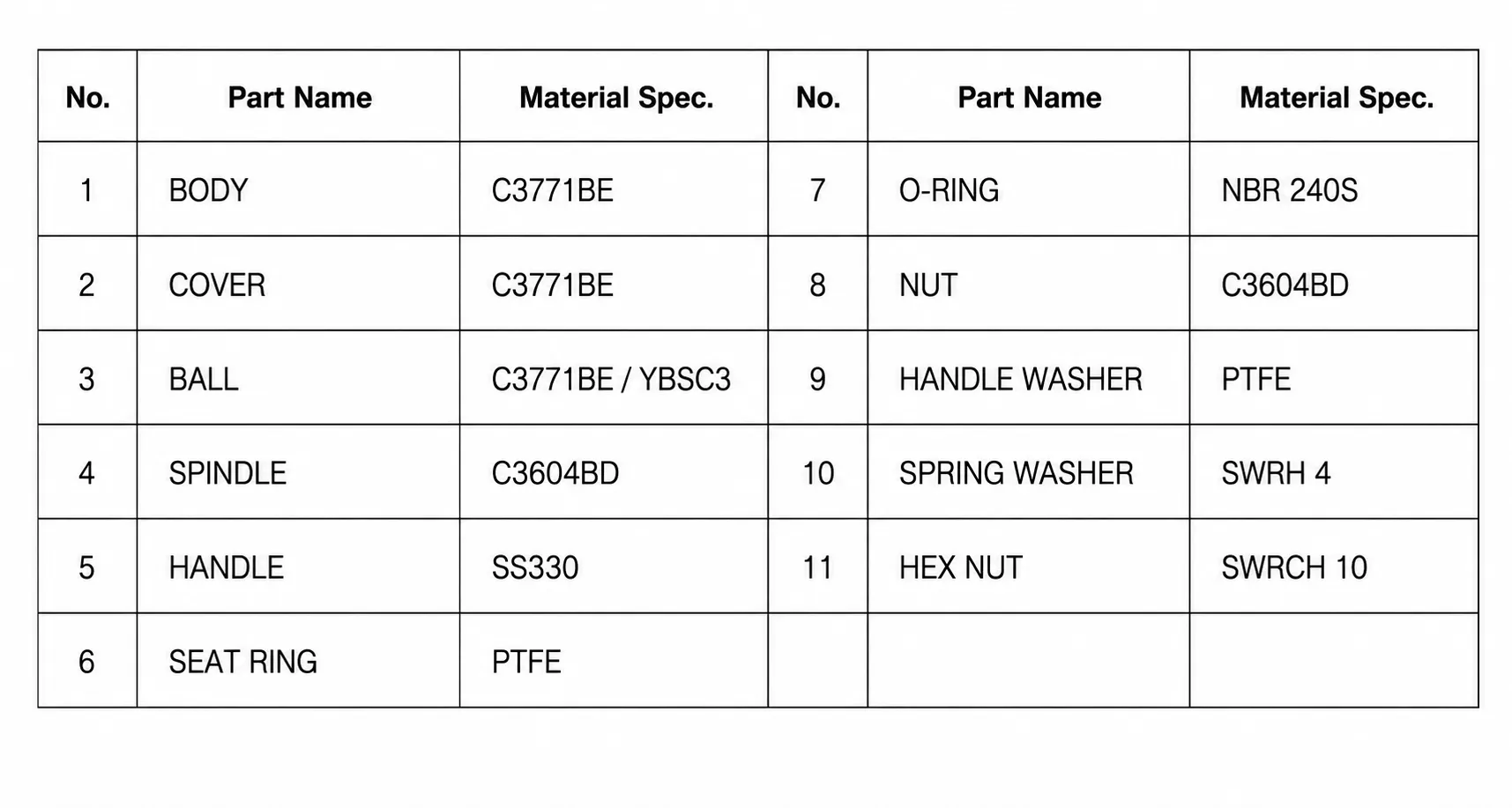

Part Name & Materials

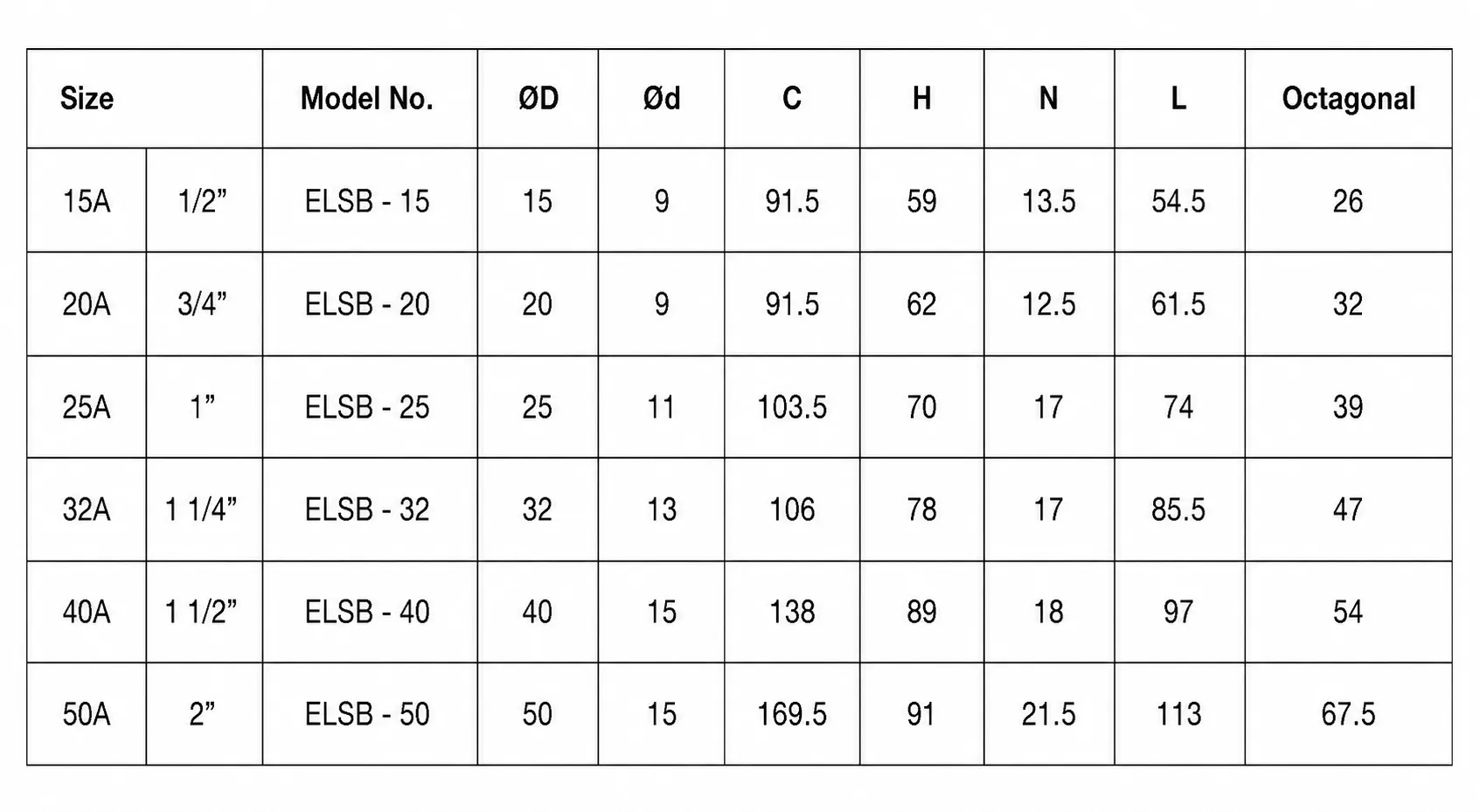

Dimensions
